Protect BOX LIGHT

Protect BOX LIGHT is a pallet-separable model that can be quickly fitted around customers’ pallets. It substantially reduces handling time while increasing loading capacity and reducing weight.

Solution Overview

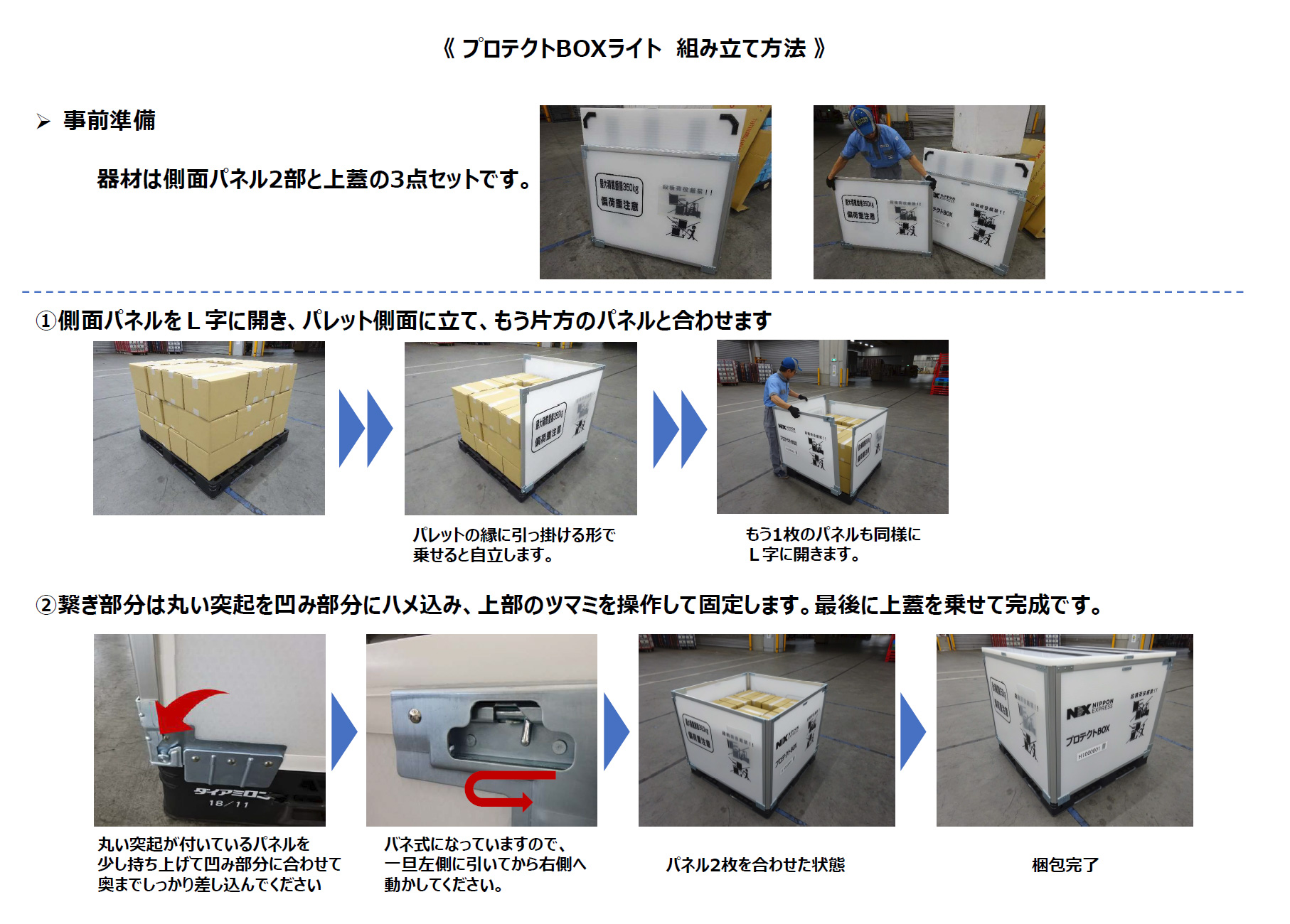

A simple system: fit the side panels and lid around a pallet already loaded with cargo. It provides the same protection against soiling and damage as Protect BOX, with less handling effort. *Assembly instructions are available in Japanese only.

Solution Overview

Features of Protect BOX LIGHT

  • One-touch attachment reduces work time.

    With a simple one-touch attachment that just slips onto the customer's pallet with the sides and lid, no complex assembly procedures are required. Furthermore, there is no need for transshipment, enabling integrated pallet transport from origin to destination. This significantly reduces working time and personnel burden.

  • Increased loading capacity and improved loading efficiency.

    Because the sides are attached to the outside of the pallet, the load capacity is increased by approximately 10% compared to conventional Protect Boxes. Furthermore, it can be stacked in two layers inside containers and trucks, eliminating wasted space and improving loading efficiency.

  • Achieves weight reduction

    By reviewing the components, the weight has been reduced from 46kg to 25kg. This approximately 30% weight reduction makes it easier to handle and contributes to lower operating costs.

  • The basic performance of the Protect BOX is also inherited.

    The honeycomb core material covering the entire surface provides robust protection against cargo damage caused by external factors. The LIGHT version offers the same level of protection against soiling and damage as the standard Protect BOX.

Specifications (compared to the standard Protect BOX model)

Main specificationsProtect BOX (Pallet Integrated Type)Protect BOX LIGHT (Pallet Separation Type)
External dimensions (assembled) width1,110 mm1,125 mm
External dimensions (assembled) depth1,110 mm1,125 mm
External dimensions (assembled) height1,029 mm1,029 mm
Internal width1,039 mm1,070 mm
Internal dimensions Depth1,043 mm1,070 mm
Internal dimensions Height843 mm847 mm
volumetric weight256 kg272 kg (approximately +6%)
Folded outer dimensions: width1,110 mm1,125 mm
Folded outer dimensions Depth1,110 mm1,125 mm
Folded outer dimensions Height268 mm140 mm
own weight46 kg25 kg (approximately -46%)
Maximum load capacity350 kg350 kg
